        • Bixolon XD5-40d label printer Direct thermal 203 x 203 DPI 178 mm/sec Wired Ethernet LAN

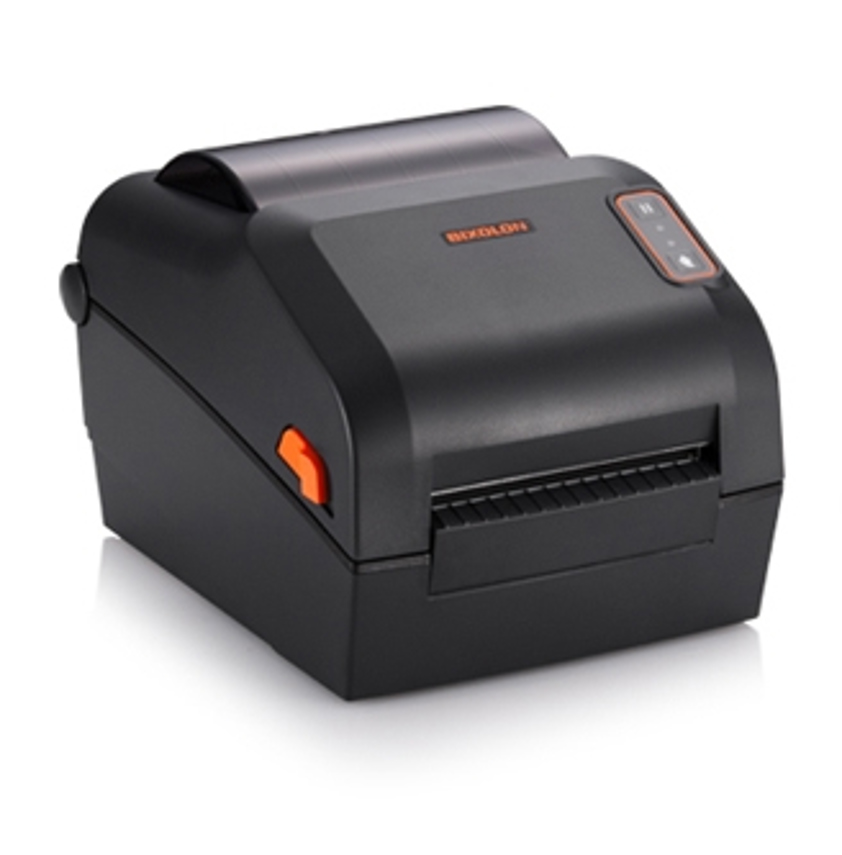

        Bixolon XD5-40d label printer Direct thermal 203 x 203 DPI 178 mm/sec Wired Ethernet LAN

        SKU: XD5-40DEK
        £213.90 ex VAT
        £256.68 inc VAT
        Product out of stockOut of stock

        • Robust and highly featured

          The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d’s standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.

          Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 2-year warranty as standard.

          Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.

          Show more
        • Print quality
          Maximum resolution203 x 203 DPI
          Maximum printing width10.8 cm
          Printing
          Print speed178 mm/sec
          Maximum resolution203 x 203 DPI
          Maximum printing width10.8 cm
          Print technologyDirect thermal
          Maximum print length1 m
          Printable dot numbers8 dot
          Display
          DisplayNo
          Network
          Wi-FiNo
          Ethernet LANYes
          Memory
          Internal memory64 MB
          Flash memory128 MB
          Paper handling
          Ribbon width11 cm
          Ribbon length300 m
          Media thickness0.06 - 0.2 mm
          Maximum roll diameter12.7 cm
          Maximum label width11.8 cm
          AutocutterYes
          Ports & interfaces
          RS-232 ports1
          Connectivity technologyWired
          Wi-FiNo
          Ethernet LANYes
          USB portYes
          Performance
          Mobile operating systems supportedAndroid, iOS
          Built-in barcodes1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39
          Ribbon width11 cm
          Ribbon length300 m
          Internal memory64 MB
          Flash memory128 MB
          Character sets5 BPL-E, 16 BPL-Z, SLCS, Unicode
          Design
          DisplayNo
          Product colourBlack
          Control typeButtons
          Power
          AC input voltage100 - 240 V
          AC input frequency50 - 60 Hz
          Technical details
          Windows operating systems supportedYes
          Mac operating systems supportedYes
          Product colourBlack
          Built-in barcodes1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39
          Ribbon width11 cm
          Ribbon length300 m
          Maximum label width11.8 cm
          Character sets5 BPL-E, 16 BPL-Z, SLCS, Unicode
          Sustainability certificatesENERGY STAR
          Harmonized System (HS) code84433210
          System requirements
          Mobile operating systems supportedAndroid, iOS
          Linux operating systems supportedYes
          Windows operating systems supportedYes
          Mac operating systems supportedYes
          Operational conditions
          Storage temperature (T-T)-20 - 60 °C
          Storage relative humidity (H-H)10 - 90%
          Operating temperature (T-T)0 - 40 °C
          Operating relative humidity (H-H)10 - 80%
          Weight & dimensions
          Width194 mm
          Depth248 mm
          Height169 mm
          Weight1.89 kg
          Packaging content
          Cables includedUSB
          Logistics data
          Harmonized System (HS) code84433210
          Other features
          Character sets5 BPL-E, 16 BPL-Z, SLCS, Unicode
