        • Bixolon XD5-40t label printer Direct thermal / Thermal transfer 203 x 203 DPI 152 mm/sec Wired & Wireless Ethernet LAN Wi-Fi

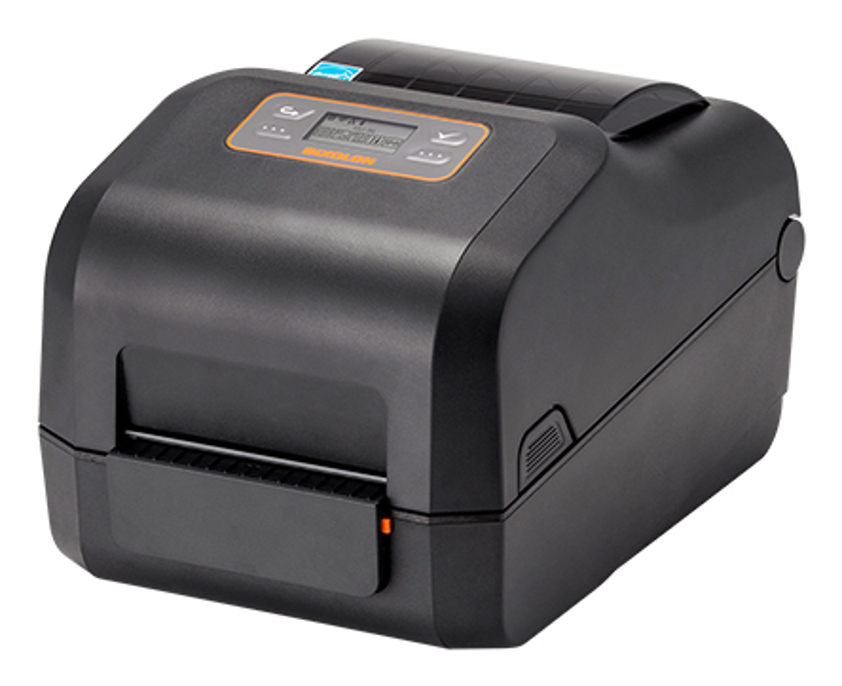

        Bixolon XD5-40t label printer Direct thermal / Thermal transfer 203 x 203 DPI 152 mm/sec Wired & Wireless Ethernet LAN Wi-Fi

        SKU: XD5-40TEK
        £248.16 ex VAT
        £297.79 inc VAT
        Product low stockLow stock
        • The XD5 series printers are available in Direct Thermal or Thermal Transfer model, fully compatible with a market-leading programming language such as SLCS™, BPL-Z™ and BPL-E™, while supporting Smart Switch Programming Language. The XD5 series supports UHF RFID encode and print capability, easy installation and maintenance with exceptional print quality at 300 dpi. The XD5 series can connect to a wired or wireless network - 10/100 Ethernet or WLAN 802.11a/b/g/n. The long-lasting print head, auto cutter and platen rollers with tool-less removable design minimize operation and maintenance costs. Simple out-of-box setup is ensured thanks to the easy media loading of its compact clamshell design with adjustable sensors and real-time calibration across a range of receipt, labels, tag or wristband media. The XD5 series offers easy integration with the availability of Windows, OPOS, Linux and MAC drivers, plus the development of your own applications via a suite of SDKs, and is backed by class-leading reliability.

          4-inch Thermal Transfer Desktop Label Printer
          The mid-tier 4-inch (118 mm) thermal transfer desktop label printer features a tool-less design for simple maintenance, multiple wired and wireless interface, optional mono LCD and supporting half-inch and full-inch core ribbon (74 m and 300 m). XD5-40t is suitable for asset marking, price management and manufacturing labelling that requires robust and exceptional print quality.

        • Print quality
          Maximum resolution203 x 203 DPI
          Maximum printing width10.8 cm
          Printing
          Print speed152 mm/sec
          Maximum resolution203 x 203 DPI
          Maximum printing width10.8 cm
          Print technologyDirect thermal / Thermal transfer
          Maximum print length1 m
          Printable dot numbers8 dot
          Display
          Colour displayNo
          Display resolution200 x 100 pixels
          DisplayLCD
          Network
          Wi-FiYes
          Ethernet LANYes
          Memory
          Internal memory64 MB
          Flash memory128 MB
          Paper handling
          Ribbon width11 cm
          Ribbon length300 m
          Media thickness0.06 - 0.2 mm
          Maximum roll diameter12.7 cm
          Maximum label width11.8 cm
          AutocutterYes
          Ports & interfaces
          Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
          RS-232 ports1
          Connectivity technologyWired & Wireless
          Wi-FiYes
          Ethernet LANYes
          USB portYes
          Performance
          Mobile operating systems supportedAndroid, iOS
          Built-in barcodes1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39
          Ribbon width11 cm
          Ribbon length300 m
          Internal memory64 MB
          Flash memory128 MB
          Character sets5 BPL-E, 16 BPL-Z, SLCS, Unicode
          Design
          Colour displayNo
          Display resolution200 x 100 pixels
          DisplayLCD
          Product colourBlack
          Control typeButtons
          Power
          AC input voltage100 - 240 V
          AC input frequency50 - 60 Hz
          Technical details
          Windows operating systems supportedYes
          Mac operating systems supportedYes
          Product colourBlack
          Built-in barcodes1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39
          Ribbon width11 cm
          Ribbon length300 m
          Maximum label width11.8 cm
          Character sets5 BPL-E, 16 BPL-Z, SLCS, Unicode
          Sustainability certificatesENERGY STAR
          System requirements
          Mobile operating systems supportedAndroid, iOS
          Linux operating systems supportedYes
          Windows operating systems supportedYes
          Mac operating systems supportedYes
          Operational conditions
          Storage temperature (T-T)-20 - 60 °C
          Storage relative humidity (H-H)10 - 90%
          Operating temperature (T-T)5 - 40 °C
          Operating relative humidity (H-H)10 - 80%
          Weight & dimensions
          Width210 mm
          Depth284 mm
          Height188 mm
          Weight2.48 kg
          Packaging content
          Cables includedUSB
          Other features
          Character sets5 BPL-E, 16 BPL-Z, SLCS, Unicode
