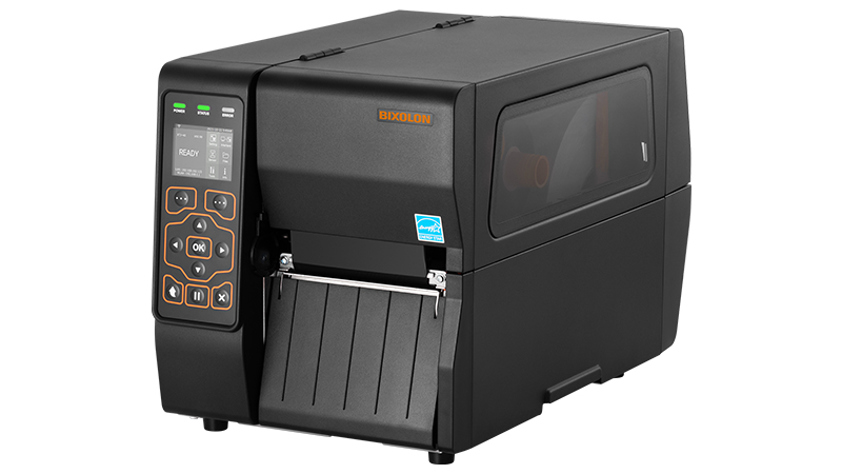

Adding a new entry-level 4-inch (114 mm) printing solution to BIXOLON's industrial label printer lineup, XT3-40 is designed with a familiar feel to the XT5-40 Series. The XT3-40 supports fast data processing and print speeds of up to 8 ips (203 mm/sec) at 203 dpi. Featuring a compact and robust design, double-holding door, and side-loading supplier path, the XT3-40 allows easy printer installation within narrow environments.
User-Friendly Design
- Compact and robust design
- Rugged all-metal case and double folding door
- Side-loading supplies path for simplified media and ribbon installation
- 2.4 inch full colour LCD display
- Peeler and Auto Cutter, and factory-installed Rewinder with Peeler options
- Toolless maintenance of roller and print head
- Supporting up to 450 m ribbon length
Industrial-Standard Performance
- Fast data processing and print speeds of up to 8 ips (203 mm/sec)
- Optional 203 or 300 dpi high resolutions
- Fully compatible with market-leading programming languages
- Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.2 (MFi certified)
Secure and Efficient Management
- Twin funtion™ supported: Copy printer settings and data via USB
- Compatible with label design software;
- BIXOLON’s Label Artist and Seagull's BarTender
- XPM™ & XCM™ - Web-based printer management software and connection app.
Bixolon XT3-40 label printer Thermal transfer 203 x 203 DPI 203 mm/sec Wired Ethernet LAN
SKU: XT3-40£1,005.53 ex VAT
£1,206.63 inc VAT
Out of stockPrint quality Maximum resolution 203 x 203 DPI Maximum printing width 10.8 cm Printing Minimum print length 4 m Print speed 203 mm/sec Maximum resolution 203 x 203 DPI Maximum printing width 10.8 cm Print technology Thermal transfer Display Display diagonal 6.1 cm (2.4") Colour display Yes Display LCD Network Wi-Fi No Ethernet LAN Yes Memory Internal memory 128 MB Flash memory 128 MB Paper handling Ribbon width 11 cm Ribbon length 450 m Media thickness 0.06 - 0.25 mm Maximum roll diameter 20.3 cm Maximum label width 11.4 cm Ports & interfaces RS-232 ports 1 Connectivity technology Wired Bluetooth No Wi-Fi No Ethernet LAN Yes USB port Yes Performance Mobile operating systems supported Android, iOS Built-in barcodes 1D, 2D Ribbon width 11 cm Ribbon length 450 m Internal memory 128 MB Flash memory 128 MB Page description languages BPL, SLCS Design Display diagonal 6.1 cm (2.4") Colour display Yes Display LCD Product colour Black Control type Buttons Power AC input voltage 100-240 V AC input frequency 50-60 Hz Technical details Windows operating systems supported Yes Mac operating systems supported Yes Product colour Black Built-in barcodes 1D, 2D Ribbon width 11 cm Ribbon length 450 m Maximum label width 11.4 cm System requirements Mobile operating systems supported Android, iOS Linux operating systems supported Yes Windows operating systems supported Yes Mac operating systems supported Yes Operational conditions Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 10 - 90% Operating temperature (T-T) 5 - 40 °C Operating relative humidity (H-H) 10 - 80% Weight & dimensions Width 240 mm Depth 430.5 mm Height 276.7 mm Weight 9.3 kg Packaging content Cables included USB Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
