The OPI3301 is a compact handheld 2D imager using Bluetooth to communicate with other devices. This wireless device is equipped with an aggressive imager providing quick and easy scanning. The lightweight handheld design of the OPI3301 provides an ergonomic fit for all day use, maximizing comfort during operation.

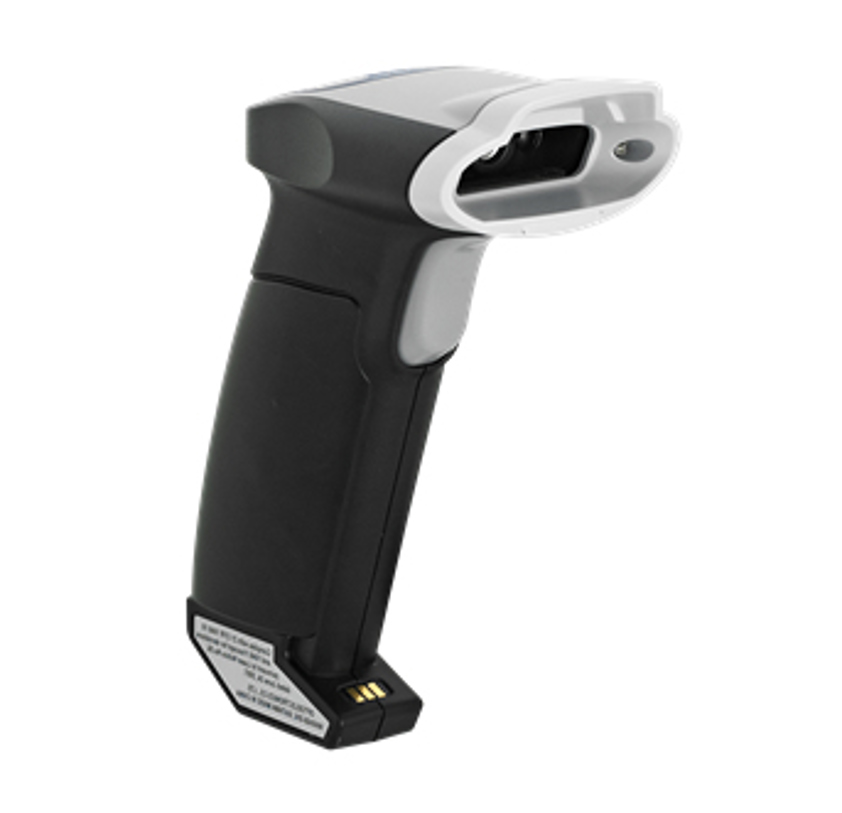

Opticon OPI3301 Handheld bar code reader CMOS Black
SKU: 12920£229.18 ex VAT
£275.02 inc VAT
Out of stockScanning Type Handheld bar code reader Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), JAN, MSI, Plessey, Telepen, Trioptic, U.P.C. 2D (matrix & stacked) barcodes supported Aztec Code, Codablock, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code Optical sensor resolution 460800 pixels Tilt reading angle 0 - 360° Sensor type CMOS Pitch reading angle -50 - 50° Ports & interfaces Wireless range 10 m Connectivity technology Wireless Bluetooth version 2.0+EDR Standard interfaces Bluetooth Performance LED indicators Yes Keys quantity 1 keys Housing material ABS synthetics RAM capacity 1 MB International Protection (IP) code IP42 Internal memory 1 MB Product colour Black Certification CE, FCC, VCCI, IEC 60825-1 Class 2, IEC 62471, IEC 60825-1 Class 1, IEC 60950-1 Buzzer Yes Design Type Handheld bar code reader LED indicators Yes Keys quantity 1 keys Housing material ABS synthetics International Protection (IP) code IP42 Product colour Black Certification CE, FCC, VCCI, IEC 60825-1 Class 2, IEC 62471, IEC 60825-1 Class 1, IEC 60950-1 Power Power consumption 300 mA Power source type Battery Battery life 10 h Charging time 3 h Battery voltage 3.7 V Battery technology Lithium-Ion (Li-Ion) Battery capacity 1100 mAh Weight & dimensions Width 56 mm Depth 113 mm Height 137 mm Weight 110 g Technical details Type Handheld bar code reader LED indicators Yes Keys quantity 1 keys Housing material ABS synthetics RAM capacity 1 MB International Protection (IP) code IP42 Internal memory 1 MB Product colour Black Certification CE, FCC, VCCI, IEC 60825-1 Class 2, IEC 62471, IEC 60825-1 Class 1, IEC 60950-1 Buzzer Yes Sustainability certificates RoHS Operational conditions Storage temperature (T-T) -25 - 60 °C Operating temperature (T-T) -20 - 50 °C Operating relative humidity (H-H) 5 - 85% Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
