The OPN-3002n is supplied as a ready to go functional kit including a USB cable and lanyard. With its unique ergonomic design and weighing only 60 grams the OPN-3002 is perfectly suited to being worn around the user’s neck with the lanyard supplied. The OPN-3002n has a drop resistance to 1.5 meters (no need for a special protection cover).
Ease in use
Using the OPN-3002n is straightforward. No special training is needed as users only need to press a trigger key to operate and a reset key to control mistakes.

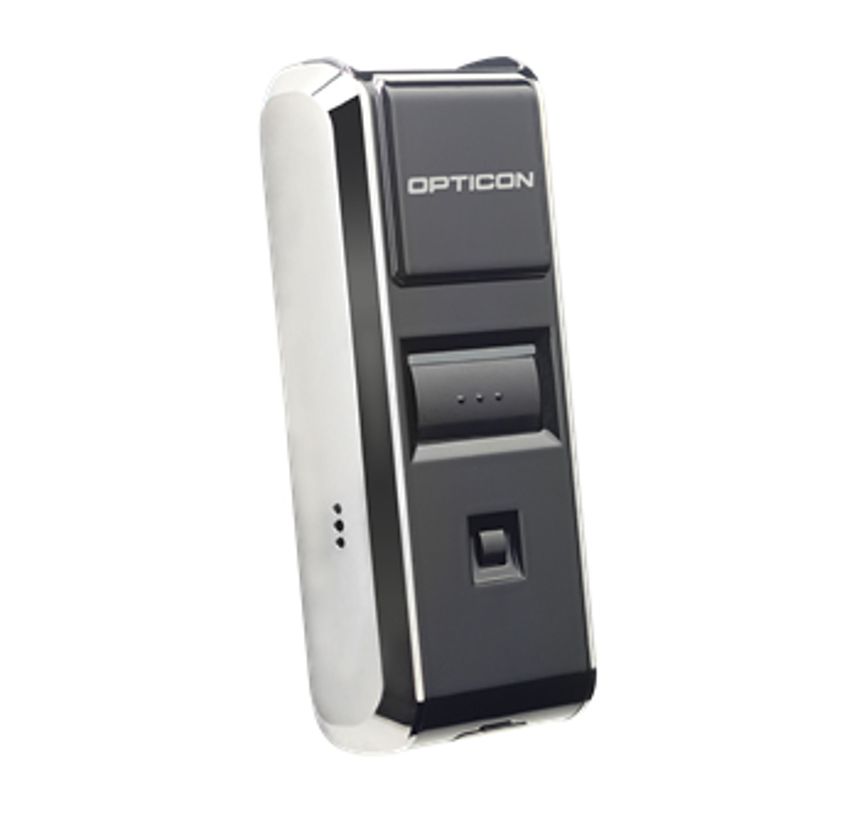

Opticon OPN-3002n Handheld bar code reader 1D/2D CMOS Black, Silver
SKU: 13168£199.17 ex VAT
£239.00 inc VAT
Out of stockScanning Type Handheld bar code reader Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, MSI, Plessey, Telepen, Trioptic, U.P.C. 2D (matrix & stacked) barcodes supported Aztec Code, Codablock, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code Optical sensor resolution 360960 pixels Tilt reading angle 0 - 360° Sensor type CMOS Scanner type 1D/2D Pitch reading angle -50 - 50° Ports & interfaces Connectivity technology Wired & Wireless Bluetooth version 2.1+EDR Standard interfaces Bluetooth, USB Performance LED indicators Yes Keys quantity 2 keys Housing material ABS synthetics Built-in display No RAM capacity 0.096 MB Built-in processor 32-bit CISC Processor frequency 96 MHz Internal memory 1 MB Product colour Black, Silver Certification CE, FCC, VCCI, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN55024 Buzzer Yes Design Type Handheld bar code reader LED indicators Yes Keys quantity 2 keys Housing material ABS synthetics Product colour Black, Silver Certification CE, FCC, VCCI, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN55024 Power Power source type Battery Battery life 10 h Weight & dimensions Width 36 mm Depth 21.5 mm Height 83 mm Weight 57 g Technical details Type Handheld bar code reader LED indicators Yes Keys quantity 2 keys Housing material ABS synthetics Built-in display No RAM capacity 0.096 MB Built-in processor 32-bit CISC Processor frequency 96 MHz Internal memory 1 MB Product colour Black, Silver Certification CE, FCC, VCCI, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN55024 Buzzer Yes Sustainability certificates RoHS Packaging data Cables included USB Operational conditions Storage temperature (T-T) -20 - 60 °C Operating temperature (T-T) 0 - 50 °C Operating relative humidity (H-H) 20 - 85% Packaging content Cables included USB Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
