This high-performance scanning device features a rubberized pistol grip and trigger guard, sealed up to IP 54 standards for operation in dirty and harsh conditions. The OPR3001, withstanding multiple drops up to 2 meters onto concrete, has been awarded with the Good Design Award. This is Japan's most prestigious industrial design award, from the Japan Industrial Design Promotion Organization. Flexible The OPR3001 is designed for aggressive reading of poorly printed and slightly damaged barcodes. A large and bright LED along with an adjustable tone provides a clear indication, especially suitable for operation in low-light and noisy environments. The OPR3001 is available with USB (HID), RS232 and Keyboard Wedge interface options, for easy implementation.

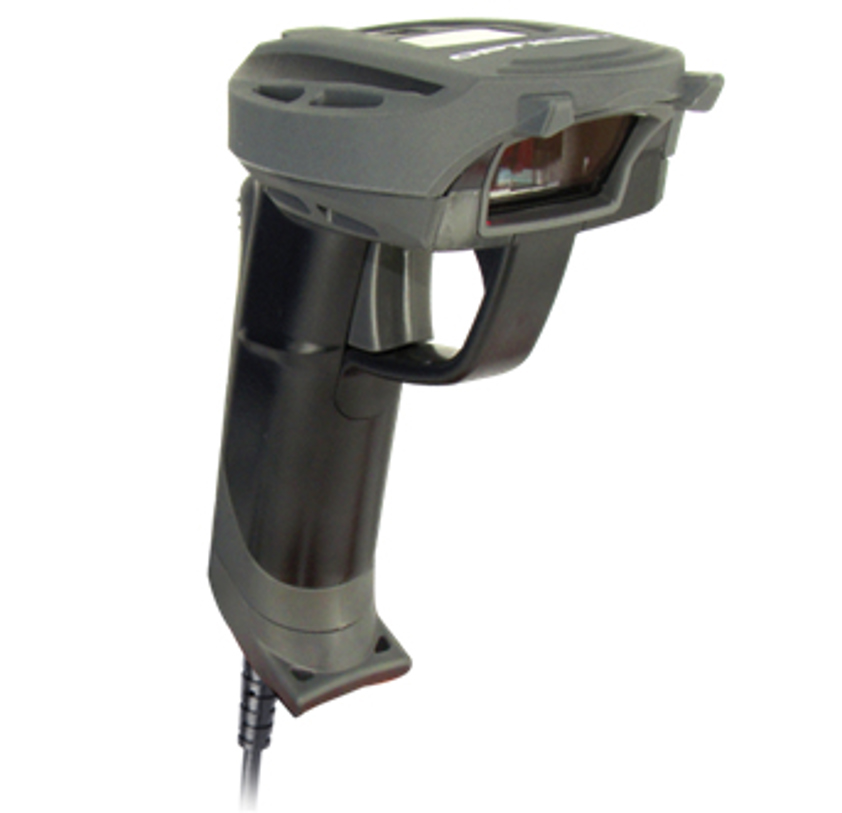

Opticon OPR3001 Handheld bar code reader 1D/2D Laser Black
SKU: 11759£147.26 ex VAT
£176.71 inc VAT
Out of stockScanning Type Handheld bar code reader Linear (1D) barcodes supported Codabar,Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),JAN,MSI,Plessey,Telepen,Trioptic,U.P.C. 2D (matrix & stacked) barcodes supported Composite Codes, MicroPDF417, PDF417 Wavelength 650 nm Tilt reading angle -20 - 20° Sensor type Laser Scanner type 1D/2D Read rate (max) 100 reads/s Pitch reading angle -35 - 35° Ports & interfaces Connectivity technology Wired Standard interfaces RS-232 Performance LED indicators Yes Keys quantity 1 keys Housing material ABS synthetics International Protection (IP) code IP54 Product colour Black Certification CE, FCC, VCCI, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II Buzzer Yes Design Type Handheld bar code reader LED indicators Yes Keys quantity 1 keys Housing material ABS synthetics International Protection (IP) code IP54 Product colour Black Certification CE, FCC, VCCI, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II Power Power consumption 130 mA Power source type DC Input voltage 6 V Weight & dimensions Width 68 mm Depth 150 mm Height 155 mm Weight 230 g Technical details Type Handheld bar code reader LED indicators Yes Keys quantity 1 keys Housing material ABS synthetics International Protection (IP) code IP54 Product colour Black Certification CE, FCC, VCCI, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II Buzzer Yes Sustainability certificates RoHS Operational conditions Storage temperature (T-T) -30 - 70 °C Operating temperature (T-T) -10 - 60 °C Operating relative humidity (H-H) 5 - 90% Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
