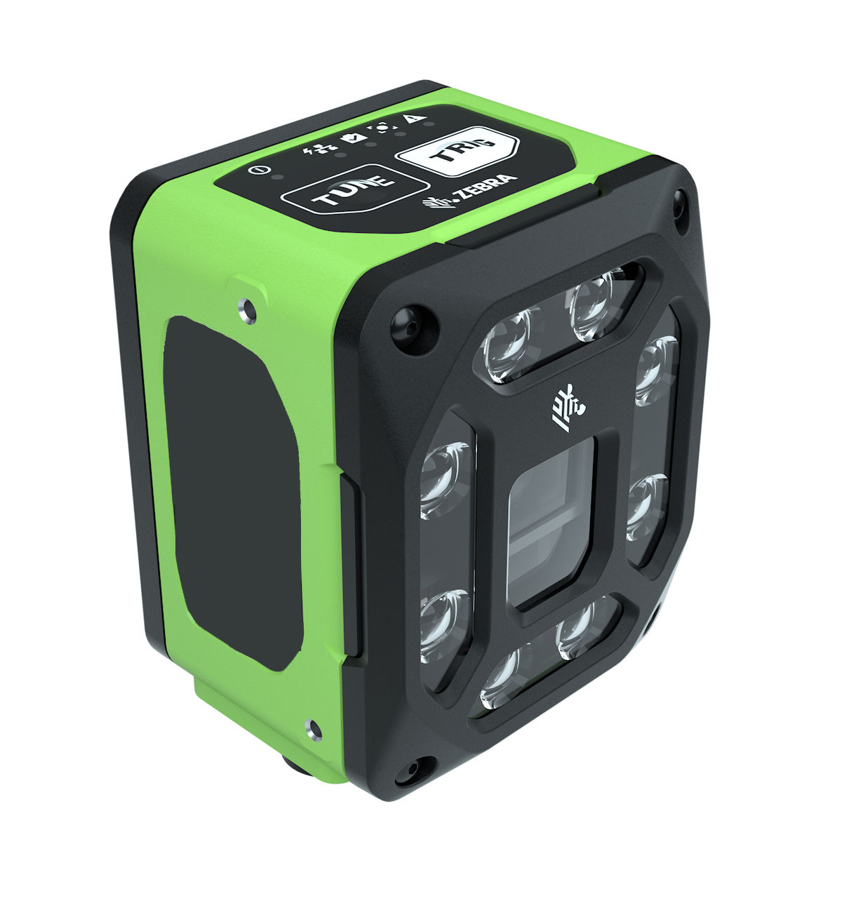

        Zebra FS42 Fixed bar code reader 1D/2D CMOS Black, Green

        SKU: FS42-WA20G4-2C00W
        £4,038.26 ex VAT
        £4,845.91 inc VAT
        Product in stockIn stock
        • FS42 Fixed Industrial Scanner

          Built for High-Speed Data Capture and Deep Learning Applications
          Building off the all-around performance and flexibility of the FS40, the FS42 is optimized for resource-intensive tasks like deep learning-based OCR applications and high-speed scanning when speed is paramount. With increased on-board memory and a neural processing unit (NPU) for accelerated data processing, the FS42 also offers a seamless upgrade path to more complex machine vision applications.

          Powerful Scanning Performance
          From fast moving conveyors and scan tunnels to forklift and dock door scanning, the FS42 delivers outstanding performance and versatility for demanding scanning applications. Get first-time every time capture of 1D/2D barcodes and direct part marks with PRZM Intelligent Imaging.

          Scalable Automation Options
          Purpose-built with a powerful new processor and increased on-board memory, the FS42 supports ever-more challenging machine vision applications that demand significant processing power. This device lets you confidently power applications today and be ready to meet future requirements.

          Deep-Learning-Driven Performance Enhancements
          The FS42 excels at applications like deep-learning-based OCR (DL-OCR), thanks to its enhanced processing powers. Upgrading its software license further enables advanced machine vision applications such as anomaly detection, marking a significant performance leap in industrial automation.

        • Scanning
          TypeFixed bar code reader
          Linear (1D) barcodes supportedCodabar, Code 39, Code 93, MSI-Plessey, Plessey, Standard 2 of 5
          2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
          Sensor typeCMOS
          Scanner type1D/2D
          Read rate (max)60 reads/s
          Optical sensor resolution (W x H)1920 x 1200 pixels
          Ports & interfaces
          Connectivity technologyWired
          Ethernet LAN data rates10,100,1000 Mbit/s
          Standard interfacesUSB
          Performance
          LED indicatorsYes
          International Protection (IP) codeIP65, IP67
          Product colourBlack, Green
          Design
          TypeFixed bar code reader
          LED indicatorsYes
          International Protection (IP) codeIP65, IP67
          Product colourBlack, Green
          Power
          Power source typePoE, USB
          Weight & dimensions
          Width64 mm
          Depth91.4 mm
          Height54 mm
          Weight400 g
          Technical details
          TypeFixed bar code reader
          LED indicatorsYes
          International Protection (IP) codeIP65, IP67
          Product colourBlack, Green
          Packaging data
          External power adapterYes
          Network
          Ethernet LAN data rates10,100,1000 Mbit/s
          Operational conditions
          Storage temperature (T-T)-40 - 70 °C
          Operating temperature (T-T)0 - 40 °C
          Packaging content
          External power adapterYes
