Bringing Link-OS® environment capabilities to the Desktop, the ZD500 supports powerful applications for intuitive use and management. Delivering top-quality performance in the most demanding applications, it boasts a standard set of advanced features and supports both direct thermal and thermal transfer printing.
- Tool-less printhead and platen replacement;
- OpenACCESS™ for easy media loading;
- Quick and easy ribbon loading;
- Simplified calibration of media;
- Quad connectivity: USB, Parallel, Serial, and Ethernet;
- Real-time clock;
- LCD User Interface;
- Zebra E3 Printhead Energy Control;
- ENERGY STAR® qualified;
- Link-OS™enabled;
- Print Touch™ app;
- Unicode compliant for multi-language printing;
- 16 resident expandable ZPL II® bitmap fonts;
- Two resident scalable ZPL fonts;
- Auto-switching 100-240V power supply;
- Head-up sensor;
- Standard tear-off mode feature;
- 3" media core adaptor;
- Zebra printer drivers for Windows™.

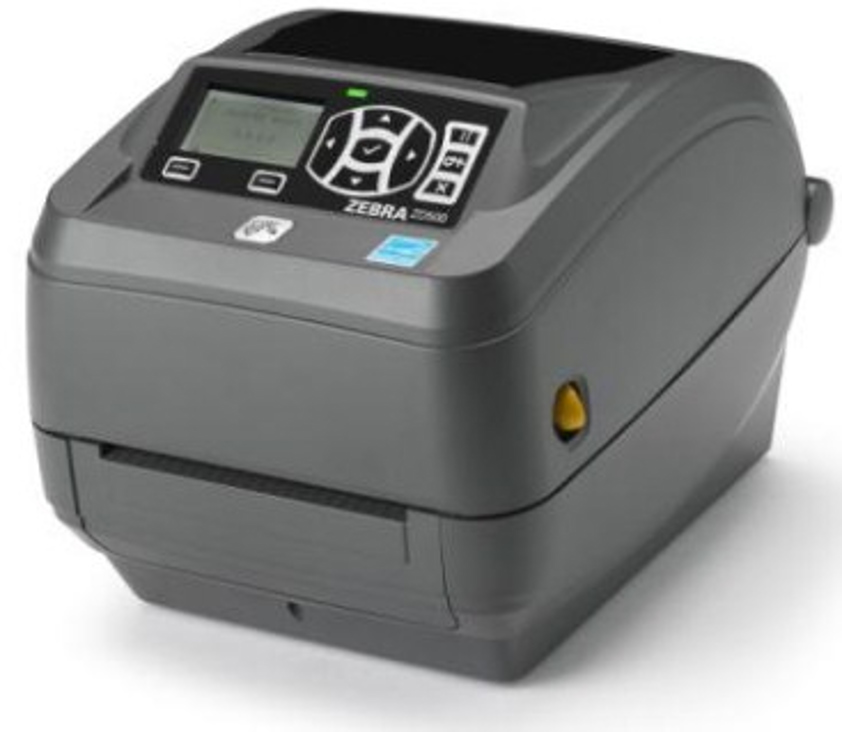

Zebra ZD500 label printer Direct thermal / Thermal transfer 300 x 300 DPI 102 mm/sec Wired Ethernet LAN
SKU: ZD50043-T0E200FZ£566.53 ex VAT
£679.84 inc VAT
Out of stockPrint quality Maximum resolution 300 x 300 DPI Maximum printing width 10.4 cm Printing Colour No Print speed 4 lpm Print speed 102 mm/sec Maximum resolution 300 x 300 DPI Maximum printing width 10.4 cm Print technology Direct thermal / Thermal transfer Design LED indicators Yes Display LCD Product colour Black Display Display LCD Network Wi-Fi No Ethernet LAN Yes Memory Internal memory 128 MB Flash memory 256 MB Paper handling Ribbon width 10.9 cm Ribbon length 74 m Media thickness 0.08 - 0.305 mm Maximum roll diameter 12.7 cm Maximum media length 99 cm Maximum label width 10.8 cm Maximum label length 0.99 m Core diameter 1.27 cm Ports & interfaces USB 2.0 ports quantity 1 RS-232 ports 1 Parallel ports quantity 1 Connectivity technology Wired Wi-Fi No Ethernet LAN Yes USB port Yes Performance Built-in barcodes 2D, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E Ribbon width 10.9 cm Ribbon length 74 m Internal memory 128 MB Flash memory 256 MB Power AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Technical details Cabling technology 10/100Base-T(X) Windows operating systems supported Yes Product colour Black Built-in barcodes 2D, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E Ribbon width 10.9 cm Ribbon length 74 m Maximum label width 10.8 cm Maximum label length 0.99 m LED indicators Yes Sustainability certificates ENERGY STAR Harmonized System (HS) code 84433210 Software Drivers included Yes System requirements Windows operating systems supported Yes Operational conditions Storage temperature (T-T) -40 - 60 °C Storage relative humidity (H-H) 5 - 90% Operating temperature (T-T) 4.4 - 41 °C Operating relative humidity (H-H) 10 - 90% Weight & dimensions Width 193 mm Depth 254 mm Height 191 mm Weight 2.2 kg Packaging content Quick start guide Yes Cables included AC, USB Drivers included Yes Logistics data Harmonized System (HS) code 84433210 Other features Cabling technology 10/100Base-T(X) LED indicators Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
