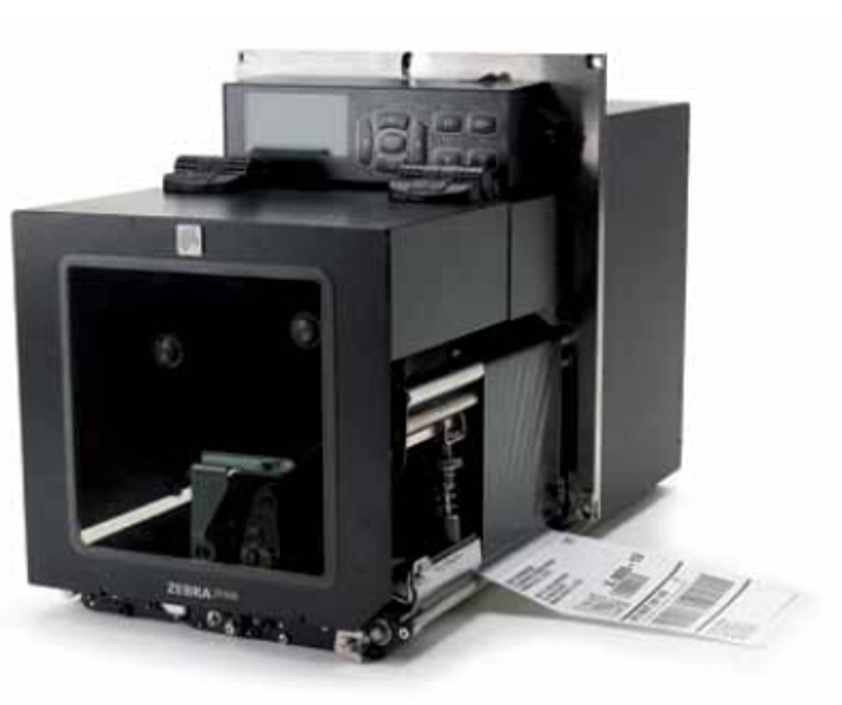

ZE500 Print Engines
The ZE500 series takes an innovative approach to OEM print engines. Leveraging customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.
Used For:
- Cross Docking;
- Receiving/Shipping;
- Compliance Labeling;
- Order Labeling.
The elegant design of the ZE500 simplifies maintenance and dramatically reduces downtime. All three rollers can be exchanged in minutes, with no need to access the printer’s electronics. The wide open printhead makes cleaning and replacement simple, and the quickchange modular drive system reduces printer repair time.
Routine operations such as ribbon changing are simple and straightforward (and identical for both print widths). The new graphic display can be deported and rotated, enabling flexible positioning for improved ease of use and integration.
The user experience is much improved: the design enables easy integration with print-and-apply machinery plus has better resistance to dust and water. Expanded connectivity ports and enhanced software control of the applicator port provides further integration flexibility.
Zebra ZE500 label printer 203 x 203 DPI 305 mm/sec Wired Ethernet LAN
SKU: ZE50042-R0E0000Z£3,022.87 ex VAT
£3,627.45 inc VAT
Out of stockPrint quality Maximum resolution 203 x 203 DPI Maximum printing width 10.4 cm Printing Print speed 305 mm/sec Maximum resolution 203 x 203 DPI Maximum printing width 10.4 cm Display Display LCD Network Wi-Fi No Ethernet LAN Yes Memory Internal memory 16 MB Flash memory 64 MB Paper handling Ribbon width 10.7 cm Ribbon length 600 m Media thickness (imperial) 0.010" Media thickness 0.254 mm Maximum roll diameter 10.2 cm Maximum media length (imperial) 150" Maximum media length 3.81 m Maximum label width 11.4 cm Core diameter 2.54 cm Ports & interfaces USB 2.0 ports quantity 1 RS-232 ports 1 RS-232 interface Yes Parallel ports quantity 1 Connectivity technology Wired Wi-Fi No Ethernet LAN Yes USB port Yes Performance Built-in barcodes 1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E Ribbon width 10.7 cm Ribbon length 600 m Processor frequency 133 MHz Internal memory 16 MB Flash memory 64 MB Built-in processor Risc Certification IEC, EN, NRTL, CE, FCC, CCC, ICES, VCCI, NOM, KCC, BSMI, S-Mark, C-Tick, Gost-R Page description languages XML, ZPL, ZPL II Design Housing material Metal Display LCD Product colour Black Certification IEC, EN, NRTL, CE, FCC, CCC, ICES, VCCI, NOM, KCC, BSMI, S-Mark, C-Tick, Gost-R Power Power requirements 90 - 264V AC, 47/63Hz Technical details Product colour Black Built-in barcodes 1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E Ribbon width 10.7 cm Ribbon length 600 m Networking features Fast Ethernet Maximum label width 11.4 cm Sustainability certificates ENERGY STAR Harmonized System (HS) code 84433210 Processor Processor frequency 133 MHz Built-in processor Risc Certificates Certification IEC, EN, NRTL, CE, FCC, CCC, ICES, VCCI, NOM, KCC, BSMI, S-Mark, C-Tick, Gost-R Software Bundled software ZebraDesigner Pro ZebraNet Bridge Enterprise ZBI 2.0 ZBI-Developer System requirements Compatible operating systems Windows 7 Windows XP Windows Vista Windows Server 2008 Windows Server 2003 Operational conditions Storage temperature (T-T) -40 - 160 °F Storage temperature (T-T) -40 - 71 °C Storage relative humidity (H-H) 5 - 95% Operating temperature (T-T) 32 - 104 °F Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 20 - 85% Weight & dimensions Width 245 mm Depth 379 mm Height 300 mm Weight 15.4 kg Packaging content Bundled software ZebraDesigner Pro ZebraNet Bridge Enterprise ZBI 2.0 ZBI-Developer Logistics data Harmonized System (HS) code 84433210 Other features Networking features Fast Ethernet Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
