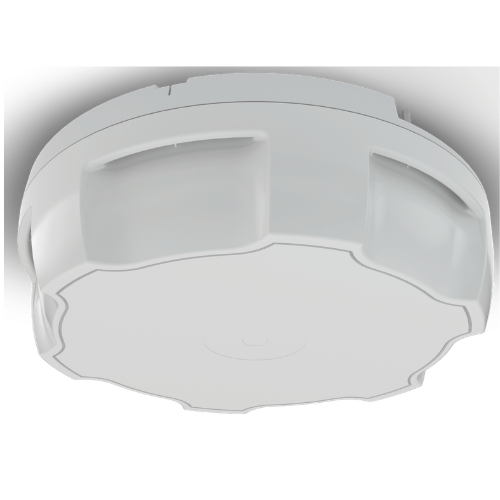

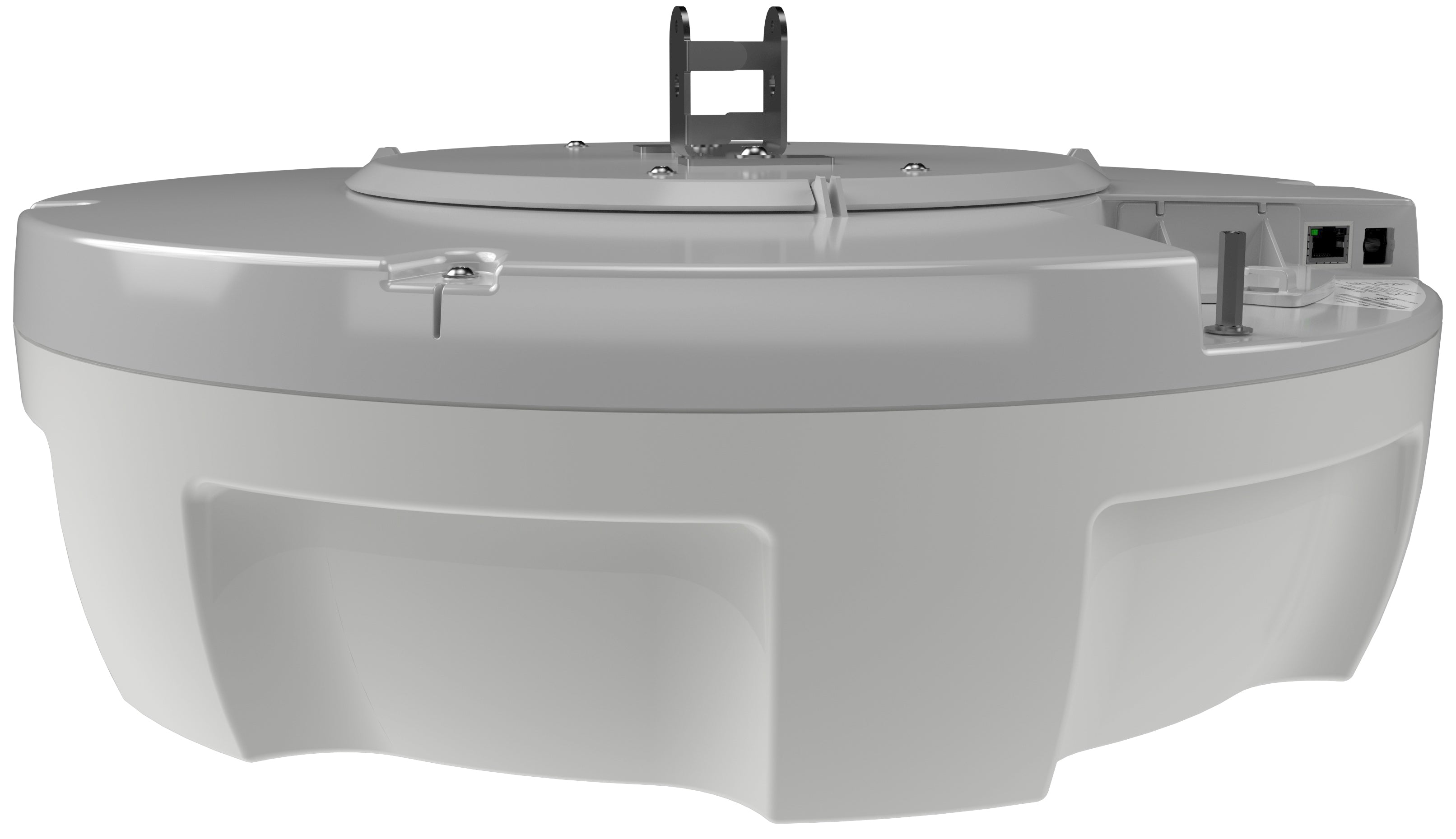

Zebra ATR7000 RFID RTLS Reader


Overview
The Zebra ATR7000 RFID RTLS Reader is an advanced overhead RFID solution designed to provide real-time visibility into the location, movement and direction of RFID-tagged assets. Ideal for manufacturing, warehousing, transportation and logistics environments, it enables organisations to move beyond simple asset detection and gain precise location intelligence across large operational areas.

Using advanced beam-forming technology and a wide-angle phased-array antenna, the ATR7000 delivers highly accurate item location data without the complexity of traditional RFID deployments. The reader can track stationary and moving assets in real time, helping businesses improve inventory accuracy, optimise workflows and reduce manual tracking processes.

The ATR7000 also supports advanced directional tracking, enabling organisations to determine whether tagged items are entering, exiting or moving through specific zones. With flexible mounting options, remote management capabilities and support for real-time locationing systems (RTLS), the ATR7000 provides a powerful platform for intelligent asset visibility and operational efficiency.



Key Features
• Advanced overhead RFID RTLS reader for real-time asset visibility
• Tracks asset location, movement and direction in real time
• Pinpoint location accuracy typically better than 2 ft (0.6 m)
• Advanced directionality with four or six configurable reporting zones
• Wide-area coverage with phased-array beam-forming technology
• Simultaneously processes multiple RFID beams for improved tracking accuracy
• Tracks both stationary and high-speed moving RFID-tagged assets
• Supports EPCglobal UHF Class 1 Gen2 and ISO 18000-63 RFID standards
• Integrated Linux-based platform with remote management capabilities
• Power over Ethernet Plus (PoE+) support for simplified deployment
• Compatible with Zebra Configuration and Location Analytics Software (CLAS) for RTLS deployments
• Supports VESA and pole-mount installations for flexible deployment options

Typical Applications
• Real-time inventory tracking
• Warehouse asset location and visibility
• Dock door and loading bay monitoring
• Entry and exit point tracking
• Industrial automation and workflow optimisation
• Manufacturing asset tracking
• Transportation and logistics operations
• Large area RFID monitoring and movement analysis
