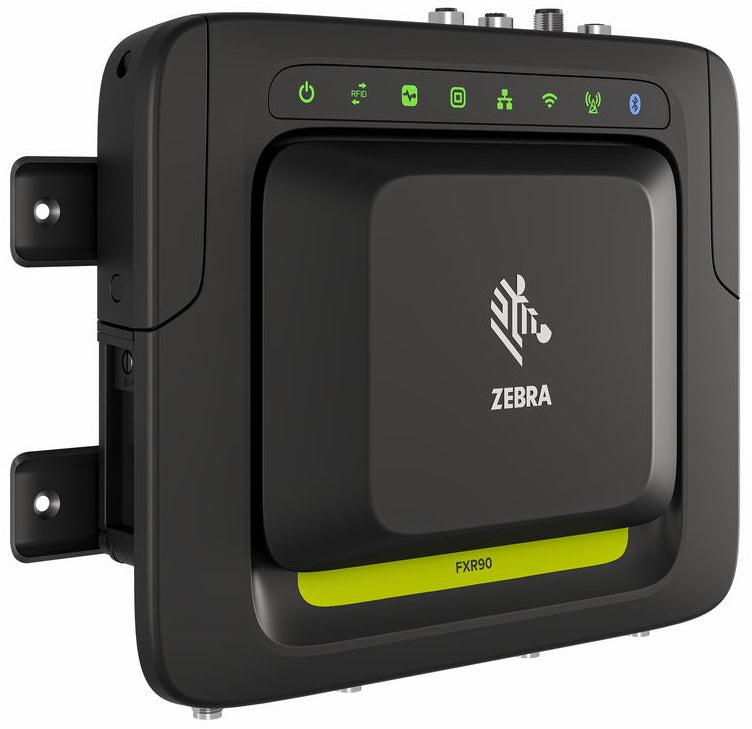

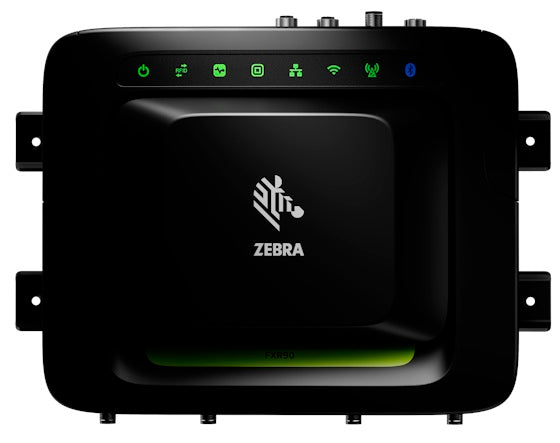

Zebra FXR90 Ultra-Rugged Fixed UHF RFID Reader with Integrated Antenna


Overview
The Zebra FXR90 Ultra-Rugged Fixed UHF RFID Reader is designed to provide reliable RFID tracking and asset visibility in some of the harshest operating environments. Built for industries including transportation, logistics, warehousing and manufacturing, it combines rugged durability with advanced RFID performance to support critical tracking applications.

Featuring an integrated RFID antenna, the FXR90 simplifies installation while delivering extensive read coverage and accurate asset visibility. Its ultra-rugged construction is designed to withstand dust, water, extreme temperatures and demanding outdoor conditions, making it suitable for both indoor and outdoor deployments.

With built-in wireless technologies including Wi-Fi 6, Bluetooth 5.3, 5G, GPS and CBRS support, the FXR90 offers exceptional deployment flexibility. Whether tracking assets across a warehouse, monitoring equipment in a yard or managing inventory in remote locations, the reader provides reliable connectivity and real-time data access.



Key Features
• Ultra-rugged fixed UHF RFID reader with integrated antenna
• Designed for indoor and outdoor deployment in challenging environments
• Dual IP65 and IP67 sealing for protection against dust and water ingress
• Read rates of up to 1,300+ RFID tags per second
• Integrated RFID antenna for simplified installation and deployment
• Read range up to 100 ft (30.5 m) in supported configurations
• Integrated Wi-Fi 6, Bluetooth 5.3, 5G, GPS and CBRS connectivity
• Mobile-friendly web interface for configuration and device management
• IoT Connector support for simplified edge device integration
• Multiple power options including PoE, DC and sealed outdoor power supplies
• Flexible mounting options including VESA and flush mount configurations
• Supports EPC Class 1 Gen2 and ISO 18000-6C RFID standards

Typical Applications
• Asset tracking and inventory visibility
• Transportation and logistics operations
• Baggage and parcel tracking
• Warehouse cycle counting and item location
• Manufacturing work-in-process tracking
• Returnable transport object (RTO) management
• Utility and infrastructure asset monitoring
• Government asset and personnel control
