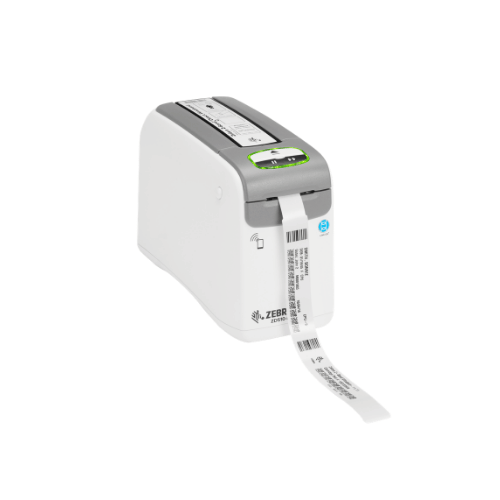

Zebra ZD510-HC Wristband Cartridge Printer – Wristband Printing Solution

Name: Zebra ZD510-HC Wristband Cartridge Printer – Wristband Printing Solution
Brand: Bar Code Data
Availability: OutOfStock

Overview

The Zebra ZD510‑HC is a dedicated healthcare wristband printing solution designed to deliver fast, accurate and reliable patient identification. Using easy‑to‑load Z‑Band® wristband cartridges and automatic smartchip calibration, it ensures consistent print quality and scannable barcodes with minimal staff training or setup.

Purpose‑built for clinical environments, the ZD510‑HC features a disinfectant‑ready housing, medical‑grade power supply and quiet operation suitable for patient care areas. With USB, Ethernet and Bluetooth Low Energy connectivity, plus support for major healthcare ADT systems and Zebra’s management tools, it provides a dependable, fully integrated wristband printing workflow for hospitals and healthcare providers.

Speak to our Team

Key Features
• Purpose-built healthcare wristband printing solution
• Simple cartridge-based loading for fast media replacement
• Automatic wristband calibration via integrated cartridge smartchip
• Direct thermal printing technology with no ribbon requirements
• Prints durable patient wristbands with clear, scannable barcodes
• Supports Zebra Z-Band® wristbands in multiple sizes and colours
• USB, USB Host, Ethernet and Bluetooth Low Energy connectivity
• Compatible with leading healthcare ADT systems including Epic, Cerner and McKesson
• Disinfectant-ready, UV-resistant healthcare housing
• IEC 60601-1 compliant medical-grade power supply
• Advanced Zebra DNA™ and Link-OS™ printer management tools
• HIPAA-friendly direct thermal printing with no ribbon disposal requirements

Printer Option Available
• ZD510-HC – Wristband Printer (USB / USB Host / Ethernet)

Typical Applications
• Patient identification wristbands
• Hospital admissions and discharge processes
• Specimen and patient matching
• Emergency department patient tracking
• Maternity and infant identification
• Pharmacy and medication administration workflows
• Healthcare asset and patient management
• Hospitality guest identification wristbands

Related SKU
• ZD51013-D0ER00FZ

Technical Overview
• Print Method: Direct Thermal
• Resolution: 300 dpi
• Maximum Print Widths: 0.75", 1" and 1.1875"
• Maximum Print Speed: Up to 4 ips (102 mm/sec)
• Connectivity: USB, USB Host, Ethernet, Bluetooth Low Energy
• Operating System: Link-OS™
• Memory: 512 MB Flash, 256 MB SDRAM
• Media Support: Zebra Z-Band® healthcare and hospitality wristbands
• Healthcare Features: Disinfectant-ready housing, healthcare power supply, HIPAA-friendly operation
